10 N Peru Gap#
Steady state implementation#
Preamble#
We are going to run this notebook in parallel using ipyparallel. To do this we launch a parallel engine with nprocs processes. Following this, all cells we wish to run in parallel need to start with the jupyter magic %%px.
%%px
Cells without the %%px magic will run locally and will not have access to anything loaded on the parallel engine.
import ipyparallel as ipp
nprocs = 2
rc = ipp.Cluster(engine_launcher_class="mpi", n=nprocs).start_and_connect_sync()
Starting 2 engines with <class 'ipyparallel.cluster.launcher.MPIEngineSetLauncher'>
Set some path information.
%%px
import sys, os, shutil
basedir = ''
if "__file__" in globals(): basedir = os.path.dirname(__file__)
sys.path.insert(0, os.path.join(basedir, os.path.pardir, os.path.pardir, os.path.pardir, 'python'))
Loading everything we need from sz_problem and also set our default plotting and output preferences.
%%px
import fenics_sz.utils
from fenics_sz.sz_problems.sz_params import allsz_params
from fenics_sz.sz_problems.sz_slab import create_slab, plot_slab
from fenics_sz.sz_problems.sz_geometry import create_sz_geometry
from fenics_sz.sz_problems.sz_steady_dislcreep import SteadyDislSubductionProblem
import numpy as np
import dolfinx as df
import pyvista as pv
import pathlib
output_folder = pathlib.Path(os.path.join(basedir, "output"))
output_folder.mkdir(exist_ok=True, parents=True)
import hashlib
import zipfile
import requests
from mpi4py import MPI
comm = MPI.COMM_WORLD
my_rank = comm.rank
Parameters#
We first select the name and resolution scale, resscale of the model.
Resolution
By default the resolution is low to allow for a quick runtime and smaller website size. If sufficient computational resources are available set a lower resscale to get higher resolutions and results with sufficient accuracy.
%%px
name = "10_N_Peru_Gap"
resscale = 3.0
Then load the remaining parameters from the global suite.
%%px
szdict = allsz_params[name]
if my_rank == 0:
print("{}:".format(name))
print("{:<20} {:<10}".format('Key','Value'))
print("-"*85)
for k, v in allsz_params[name].items():
if v is not None and k not in ['z0', 'z15']: print("{:<20} {}".format(k, v))
[stdout:0] 10_N_Peru_Gap:
Key Value
-------------------------------------------------------------------------------------
coast_distance 150
extra_width 20
lc_depth 50
io_depth 188
uc_depth 15
dirname 10_N_Peru_Gap
As 40.0
qs 0.065
A 29
sztype continental
Vs 69.5
xs [0, 41.9, 139.0, 219.0, 294.4, 319.7, 478.0, 597.0, 1132.0]
ys [-6, -15.0, -50.0, -70.0, -80.0, -82.5, -100.0, -125.0, -240.0]
Any of these can be modified in the dictionary.
Several additional parameters can be modified, for details see the documentation for the SteadyDislSubductionProblem class.
%%px
if my_rank == 0: help(SteadyDislSubductionProblem.__init__)
[stdout:0] Help on function __init__ in module fenics_sz.sz_problems.sz_base:
__init__(self, geom, **kwargs)
Initialize a BaseSubductionProblem.
Arguments:
* geom - an instance of a subduction zone geometry
Keyword Arguments:
required:
* A - age of subducting slab (in Myr) [required]
* Vs - incoming slab speed (in mm/yr) [required]
* sztype - type of subduction zone (either 'continental' or 'oceanic') [required]
* Ac - age of the overriding plate (in Myr) [required if sztype is 'oceanic']
* As - age of subduction (in Myr) [required if sztype is 'oceanic']
* qs - surface heat flux (in W/m^2) [required if sztype is 'continental']
optional:
* Ts - surface temperature (deg C, corresponds to non-dim)
* Tm - mantle temperature (deg C, corresponds to non-dim)
* kc - crustal thermal conductivity (non-dim) [only has an effect if sztype is 'continental']
* km - mantle thermal conductivity (non-dim)
* rhoc - crustal density (non-dim) [only has an effect if sztype is 'continental']
* rhom - mantle density (non-dim)
* cp - isobaric heat capacity (non-dim)
* H1 - upper crustal volumetric heat production (non-dim) [only has an effect if sztype is 'continental']
* H2 - lower crustal volumetric heat production (non-dim) [only has an effect if sztype is 'continental']
optional (dislocation creep rheology):
* etamax - maximum viscosity (Pas) [only relevant for dislocation creep rheologies]
* nsigma - stress viscosity power law exponents (non-dim) [only relevant for dislocation creep rheologies]
* Aeta - pre-exponential viscosity constant (Pa s^(1/n)) [only relevant for dislocation creep rheologies]
* E - viscosity activation energy (J/mol) [only relevant for dislocation creep rheologies]
Setup#
Setup a slab.
%%px
slab = create_slab(szdict['xs'], szdict['ys'], resscale, szdict['lc_depth'])

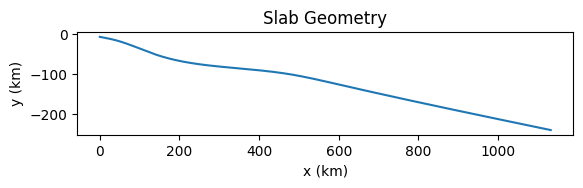

if my_rank == 0: _ = plot_slab(slab)
[output:0]
Create the subduction zome geometry around the slab.
%%px
geom = create_sz_geometry(slab, resscale, szdict['sztype'], szdict['io_depth'], szdict['extra_width'],
szdict['coast_distance'], szdict['lc_depth'], szdict['uc_depth'])

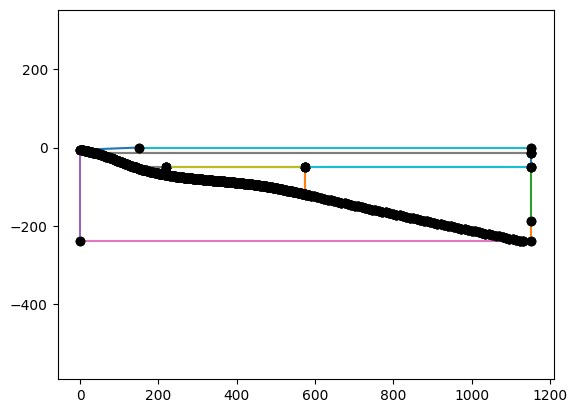

if my_rank == 0: _ = geom.plot()
[output:0]
Finally, declare the SubductionZone problem class using the dictionary of parameters.
%%px
sz = SteadyDislSubductionProblem(geom, **szdict)
Solve#
Solve using a dislocation creep rheology and assuming a steady state.
%%px
sz.solve()
[stdout:0] Iteration Residual Relative Residual
------------------------------------------
0 3640.62 1
1 1962.48 0.53905
2 169.004 0.0464217
3 72.3919 0.0198845
4 37.1996 0.0102179
5 22.5311 0.00618882
6 15.1058 0.00414925
7 10.7636 0.00295652
8 7.92837 0.00217775
9 5.93019 0.00162889
10 4.46037 0.00122517
11 3.35843 0.000922488
12 2.52681 0.000694059
13 1.89844 0.00052146
14 1.42394 0.000391126
15 1.06592 0.000292786
16 0.79591 0.00021862
17 0.592314 0.000162696
18 0.438808 0.000120531
19 0.323091 8.87462e-05
20 0.235919 6.48018e-05
21 0.17035 4.67915e-05
22 0.121164 3.32811e-05
23 0.0844212 2.31887e-05
24 0.0571512 1.56982e-05
25 0.0371187 1.01957e-05
26 0.0226718 6.22746e-06
27 0.012709 3.4909e-06
Plot#
Plot the solution.
%%px
plotter = pv.Plotter()

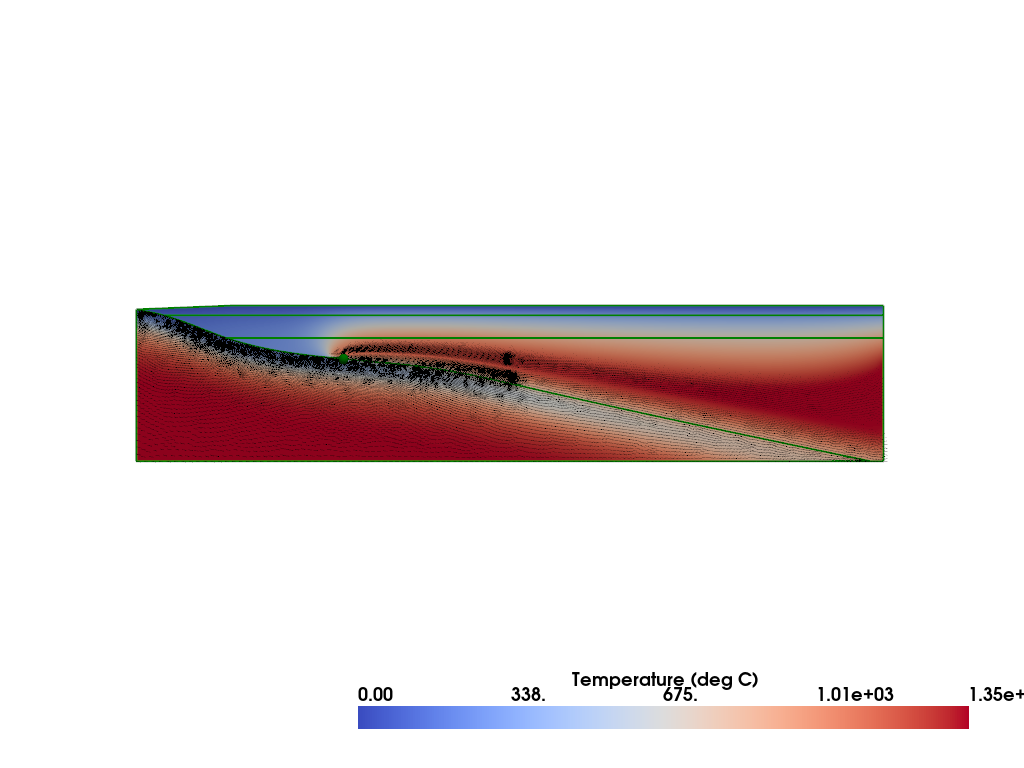

fenics_sz.utils.plot.plot_scalar(sz.T_i, plotter=plotter, scale=sz.T0, gather=True, cmap='coolwarm', scalar_bar_args={'title': 'Temperature (deg C)', 'bold':True})
fenics_sz.utils.plot.plot_vector_glyphs(sz.vw_i, plotter=plotter, gather=True, factor=0.1, color='k', scale=fenics_sz.utils.mps_to_mmpyr(sz.v0))
fenics_sz.utils.plot.plot_vector_glyphs(sz.vs_i, plotter=plotter, gather=True, factor=0.1, color='k', scale=fenics_sz.utils.mps_to_mmpyr(sz.v0))
geom.pyvistaplot(plotter=plotter, color='green', width=2)
cdpt = slab.findpoint('Slab::FullCouplingDepth')
fenics_sz.utils.plot.plot_points([[cdpt.x, cdpt.y, 0.0]], plotter=plotter, render_points_as_spheres=True, point_size=10.0, color='green')
if my_rank == 0:
fenics_sz.utils.plot.plot_show(plotter)
fenics_sz.utils.plot.plot_save(plotter, output_folder / "{}_ss_solution_resscale_{:.2f}.png".format(name, resscale))
[output:0]
Save it to disk so that it can be examined with other visualization software (e.g. Paraview).
%%px
filename = output_folder / "{}_ss_solution_resscale_{:.2f}.bp".format(name, resscale)
with df.io.VTXWriter(sz.mesh.comm, filename, [sz.T_i, sz.vs_i, sz.vw_i]) as vtx:
vtx.write(0.0)
# zip the .bp folder so that it can be downloaded from jupyter lab
if my_rank == 0: shutil.make_archive(str(filename), 'zip', root_dir=str(filename.parent), base_dir=str(filename.name))
Comparison#
Compare to the published result from Wilson & van Keken, PEPS, 2023 (II) and van Keken & Wilson, PEPS, 2023 (III). The original models used in these papers are also available as open-source repositories on github and zenodo.
First download the minimal necessary data from zenodo and check it is the right version.
%%px
zipfilename = pathlib.Path(os.path.join(basedir, os.path.pardir, os.path.pardir, os.path.pardir, "data", "vankeken_wilson_peps_2023_TF_lowres_minimal.zip"))
# only one process should download the data
if my_rank == 0:
if not zipfilename.is_file():
zipfileurl = 'https://zenodo.org/records/13234021/files/vankeken_wilson_peps_2023_TF_lowres_minimal.zip'
r = requests.get(zipfileurl, allow_redirects=True)
open(zipfilename, 'wb').write(r.content)
# wait until rank 0 has downloaded the data
comm.barrier()
assert hashlib.md5(open(zipfilename, 'rb').read()).hexdigest() == 'a8eca6220f9bee091e41a680d502fe0d'
%%px
tffilename = os.path.join('vankeken_wilson_peps_2023_TF_lowres_minimal', 'sz_suite_ss', szdict['dirname']+'_minres_2.00.vtu')
tffilepath = os.path.join(basedir, os.path.pardir, os.path.pardir, os.path.pardir, 'data')
# one process should extract the file
if my_rank == 0:
with zipfile.ZipFile(zipfilename, 'r') as z:
z.extract(tffilename, path=tffilepath)
# other processes should wait
comm.barrier()
%%px
fxgrid = fenics_sz.utils.plot.grids_scalar(sz.T_i)[0]
tfgrid = pv.get_reader(os.path.join(tffilepath, tffilename)).read()
diffgrid = fenics_sz.utils.plot.pv_diff(fxgrid, tfgrid, field_name_map={'T':'Temperature::PotentialTemperature'}, pass_point_data=True)
%%px
# first gather the data onto rank 0
diffgrid_g = fenics_sz.utils.plot.pyvista_grids(diffgrid.cells, diffgrid.celltypes, diffgrid.points, comm, gather=True)
T_g = comm.gather(diffgrid.point_data['T'], root=0)
for r, grid in enumerate(diffgrid_g):
grid.point_data['T'] = T_g[r]
grid.set_active_scalars('T')
grid.clean(tolerance=1.e-2)
diffgrid_g
# then plot it
plotter_diff = pv.Plotter()
clim = None
for grid in diffgrid_g:
plotter_diff.add_mesh(grid, cmap='coolwarm', clim=clim, scalar_bar_args={'title': 'Temperature Difference (deg C)', 'bold':True})

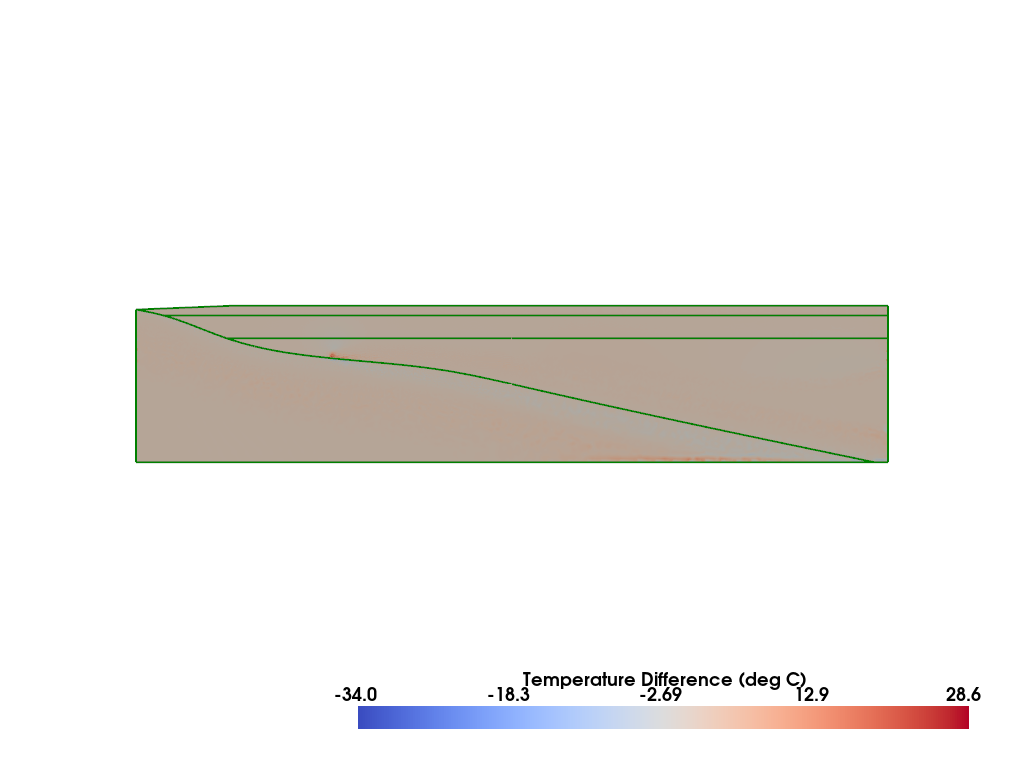

geom.pyvistaplot(plotter=plotter_diff, color='green', width=2)
cdpt = slab.findpoint('Slab::FullCouplingDepth')
#fenics_sz.utils.plot.plot_points([[cdpt.x, cdpt.y, 0.0]], plotter=plotter_diff, render_points_as_spheres=True, point_size=10.0, color='green')
plotter_diff.enable_parallel_projection()
plotter_diff.view_xy()
if my_rank == 0: plotter_diff.show()
[output:0]
%%px
integrated_data = diffgrid.integrate_data()
totalarea = comm.allreduce(integrated_data['Area'][0], op=MPI.SUM)
error = comm.allreduce(integrated_data['T'][0], op=MPI.SUM)/totalarea
if my_rank == 0: print("Average error = {}".format(error,))
assert np.abs(error) < 5
[stdout:0] Average error = 0.1405913370249392
Shutdown#
Shutdown the ipyparallel cluster engine. Running the cell below will prevent earlier cells (with %%px as the first line) from being re-run.
rc.shutdown()
